Atomic Absorption Spectrophotometer (WFX-210)

Packing:	Export Packing
Model NO.:	WFX-210
Standard:	ISO CE
Origin:	China
Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Add to Basket Add to Product Favorites

Product Description Innovated Rich oxygen air-acetylene flame analysis technique

The patented flame analysis technique adopting rich oxygen air-acetylene flame as the substitution for nitrous oxide-acetylene flame for high temperature element analyses, such as Ca, Al, Ba, W, Mo, Ti, V, etc. Flame temperature is continuously adjustable between 2300-2950º C, which makes it possible to choose the best atomization temperature for different elements. It features easy operation, low analysis cost and wide flame AAS analytical range. Rich oxygen flame is will not pollute the environment and is not harmful to human bodies. It's a break-through in flame AAS analysis.

Integrated flame/graphite furnace atomization system, changeable with flame emission burner

Automatically controlled changeover of the integrated flame and graphite furnace atomizer featuring easy operation and time saving eliminates human labor.
A flame emission burner head can be installed to perform flame emission analysis to Alkali metals as K, Na etc.

Accurate fully automated control system
Automatic 6-lamp turret, automatic adjustment of lamp current and optimization of light beam position.
Automatic wavelength scanning and peak picking
Automatic spectral bandwidth changing
Automatic changeover between flame and graphite furnace operation, automatic optimization of position parameters, automatic ignition and automatic gas flow setting
Reliable fully automatic graphite furnace analysis
Adopting FUZZY-PID and dual curve mode light-controlled temperature control technique, temperature auto-correction technique, ensures fast heating, good temperature reproducibility and high analytical sensitivity. The temperature control accuracy is less than 1%.
Graphite furnace with pneumatic control and pressure lock ensures constant pressure and reliable contact.

Multi-function auto sampler features automatic standard sample preparation, automatic correction of sampling probe depth, automatic tracing and correction of liquid surface height in the sample vessel, with the sampling accuracy of 1% and reproducibility of 0.3%, realizing fully automation of graphite furnace analysis.

Perfect safety protection measures
Alarm and automatic protection to fuel gas leakage, abnormal flow, insufficient air pressure and abnormal flame extinction in flame system;
Alarm and protection function to insufficient carrier gas and protective gas pressure, insufficient cooling water supply and over-heating in graphite furnace system.

Three-Channel Atomic Fluorescence Spectrometer (AF-630) - 1

Packing:	Export Packing
Model NO.:	AF-630
Standard:	ISO CE
Origin:	China



Add to Basket Add to Product Favorites

Product Description Environmental monitoring
Food
City water supply and drainage
Drinking water
Clinical medicine
Agriculture environmental protection and agriculture product
Chinese medicine
Harmful element detection in cosmetics
Geology and metallurgy
Ocean environment and water products
Education and scientific research

Accurate Determination of

Instrument Features
Five patented techniques with independent intellectual property.
Environmental protection type atomic fluorescence spectrometer with world-first "High-efficiency Hg-elimination Technique", decontaminating Hg pollution in lab environment efficiently and protecting analysts' health. (Patent)
Chinese first quartz atomizer with "full-ceramics infrared heating temperature control" technique with super-long lifetime. (Patent)
Chinese first technology of "low-temperature atomic Argon-Hydrogen flame auto-ignition", improving the analysis sensitivity of elements to be determined, and reducing memory effect in large degree. (Patent)
Advanced spraying jet type hydride/vapor generation gas-liquid separation system and automatic waste liquid discharge.
Standard RS-232 port communication, supporting USB interface communication.
The newest special device of "Gaseous Mercury Determination", the detection limit of which reaches 1ng/m3, determining Hg content in the air, natural gas, lab and working field etc. (Patent)
The newest special device with special technology, "Determination of Ultra-trace Hg in Water Samples" is adopted, with detection limit up to 0.0004? G/L, realizing direct determination of ultra-trace Hg in Class I and II ground water and seawater.
Realize three or two elements determination simultaneously.
Newly designed light closed optical alignment system is adoped.
Gas line auto-control, auto-protection and auto-alarm functions incorporated.

Brand-new Windows 98/Me/2000/XP operation software
Fluorescence signal profile real-time display and overlap.
Graphics scale auto zooming.
Working curve auto fitting, multi-graphics display.
Multi-functions of single-step running, continuous running and auto-sampling operation.
All kinds of analysis program, analysis data and signal graphics can be stored and printed out.
Several kinds of report format are available.
Detailed software online help is provided.
Expert system provides physical parameters of various elements, preparation of standard solutions, sample preparations, interference elimination and more than 500 relative articles on analysis methods of domestic and abroad writers.

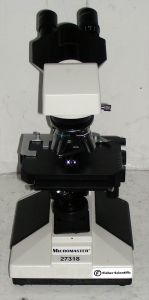

Fisher Scientific Micromaster 12-561B Binocular Microscope

	Compound Microscope
Stock #:	27318
Status:	7 Available (request a quote)
Condition:	Demo
Warranty:	WILL BE FULLY SERVICED - 6 MONTH IN SHOP WARRANTY ON ELECTRICAL
Electrical:	110 Volts, 60 Hz, 125mA

Product Description

The Fisher Scientific Micromaster Brightfield Microscope is ideally suited to educational and general laboratory use. Supplied with planachromatic objectives, Koehler illumination, and a reversed nosepiece, Fisher Micromaster I Series brightfield microscopes provide professional quality optics at affordable prices.
Eyepieces: 10X wide-field, DIN standard.
Head: Rotatable 360deg with a 30deg inclination. Adjustable for interpupillary distance and dioptric differences. Interpupillary adjustment range, 55 to 75mm. Adapters are available for photomicroscopy or videomicroscopy at additioal cost.
Nosepiece: Features quadruple reversed nosepiece with positive click stops allowing for easy manipulation of the slide without interference by the objectives. Also aids in keeping optics clean.
Objectives: Planachromatic objectives produce true color images without blurring. Include 4X (0.10 N.A.), 10X (0.25 N.A.), 40X (0.65 N.A. retractable), and 100X (1.25 N.A. retractable) oil immersion DIN standard objectives. All are parfocal, parcentered, and coated to resist reflection.
Stage: Precision-machined mechanical stage with oversized, low-position, coaxial control knobs. Chemical-resistant finish with removable spring-clip slide holder secures slide to the stage. Dimensions, 140 x 160mm.
Focus Control: Low-position, coaxial, coarse/fine controls. Adjustable safety stop prevents slide damage. Tension adjustment ring permits custom user setup.
Condenser: 1.25 N.A. Abbe condenser, fitted with an iris diaphragm and swing-in auxiliary lens for low magnification.
Illumination: Features Koehler illumination with variable-intensity quartz halogen lamp, field diaphragm, and collector lens with integrated drop-in filter holder. 6V 20w lamp with solid-state dimmer and heavy-duty three-prong cord. ON/OFF switch.

Mass Spectrometry Facility

The Mass Spectrometry Facility in the Chemistry Department at the University of the Pacific in Stockton, CA, USA, has the following state-of-the-art mass spectrometers:

The Pacific MS Facility supports research activities in the Departments of Chemistry and Biology in the College of the Pacific and in the University's School of Pharmacy and Health Sciences as well as outside collaborations with researchers in other academic institutions and industry.

The Chemistry Department at Pacific is also the home to the week-long

          Annual Workshop on Chromatography and Mass Spectrometry.

This course, now in its 17^th year, provides training to those outside of the university life interested in increasing the knowledge in mass spectrometry through the use of state-of-the-art instrumentation provided specifically for the course through major manufacturers of mass spectrometers.

        Scientists from all over the world working mostly in industry, but also from academia and government agencies, gather each year to take advantage of this continually evolving course.

The course also provides a valuable training ground for Pacific's chemistry and pharmacy graduate students who finish their studies having completed several years of being teaching assistants for this dynamic course.

New Infrared Spectrometer Meets Advanced Analytical Challenges



         PerkinElmer (USA), have announced the launch of the FrontierTM Infrared Spectrometer, a high performance infrared (FT-IR) spectrometer.
Part of a new family of spectrometers, the Frontier analytical platform meets diverse FT-IR challenges ranging from everyday measurements to the most advanced, complex analyses. The instrument combines sensitivity with flexibility for many diverse sectors, from polymers and chemicals to consumer goods and pharmaceuticals, helping to protect consumers and the environment across the world.
Frontier’s superb sensitivity and configurability ensure superior performance in demanding applications,

              helping to advance safe drug development, understand complex chemical and material properties, and meet the challenging requirements of research and academia. Dusty Tenney, president, Analytical Sciences and Laboratory Services, Perkin Elmer, commented, “With more than 65 years of experience in spectroscopy, Perkin Elmer has now developed a specialized infrared spectroscopy platform that can be adapted for customers’ research requirements. With Frontier, multiple analysis can be conducted using a single instrument. From near- to far-infrared analysis, Frontier is our most powerful spectrometer to date.”

             A range of patented PerkinElmer technologies enable the Frontier to produce superior infrared spectra. Atmospheric Vapor Compensation™ (AVC) features an advanced digital filtering algorithm designed to eliminate CO2 and H2O interferences for accurate FT-IR results. The fifth generation Dynascan™ fixed mirror-pair interferometer requires no dynamic alignment to compensate for errors in linear mirror movement. PerkinElmer’s AVI Standardisation™ calibrates spectrometer wavelength scales to a higher accuracy than achieved with conventional calibration methods.

New Protein Microscope

               The atmospheric pressure imaging mass spectrometer part of a protein microscope that was recently developed by a team of scientists at The George Washington University's Institute for Proteomics Technology and Applications, is seen during a media tour October 19, 2006 in Washington, DC. The protein microscope combines a mass spectrometer with laser sampling through a sharpened optical fiber to produce images and molecular analysis of living samples at a resolution of 100 nanometers, which is 30 times more powerful than optical microscopes. Scientists of the team claim the protein microscope has a potential to advance the treatment of a wide range of diseases, including neuromuscular ailments such as Lou Gehrig's disease, as well as HIV and cancer.
